SPL-100A/150A/250A/350A Low Temperature Incubator
Product Features
1.Mirror stainless steel integrated forming studio.The clapboard bracket can be loaded and
unloaded freely, which is convenient for cleaning inside the box.

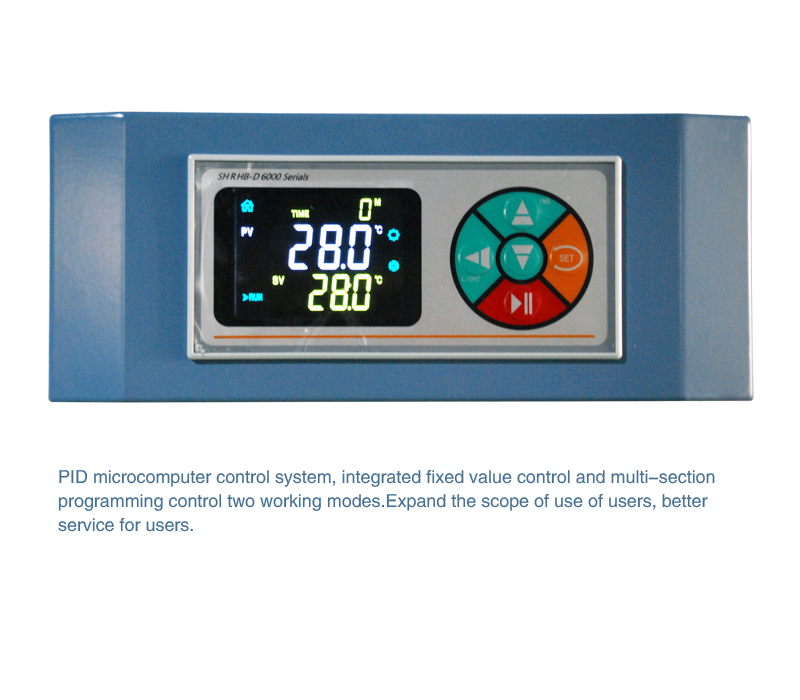

2.PID microcomputer control system, integrated fixed value control and multi-section
programming control two working modes.Expand the scope of use of users, better service for
users.
3.Large color LCD display, multi-group data display, menu operation interface, simple and easy to understand, easy to operate.
4.System integrated studio lighting and sterilization function, integrated control more convenient.
5.With system self-setting function.
6.Preset automatic turn on/off function
7.Over temperature alarm function, parameter memory function, call recovery function.
8.The left side of the box is equipped with a test hole, which is convenient for experimental
operation and temperature measurement.
9.Double-layer door structure design, better temperature insulation performance, greatly reduce the observation of the working room on the temperature.
10.International brand compressor and circulation fan, environmental protection refrigerant, high efficiency, low energy consumption, more energy saving.With frost function, fully ensure the system for a long time stable operation.
11.Equipped with leakage protector, more safe and reliable operation.
12.Equipped with high quality self-locking universal wheel, convenient for equipment movement and reliable locking.
Main Technical Parameters
Model | SPL-100A | SPL-150A | SPL-250A | SPL-350A |
Supply voltage(V) | AC220V / 50-60Hz | |||
Temp. variation(℃) | -20~65 | |||
Temp. resolution℃) | 0.1 | |||
Temp. fluctuation(℃) | ±0.3 | |||
Rack/load | 2 | 3 | ||
Refrigerant | Environmentally friendly refrigerant 404A | |||
Heating Power(kw) | 0.8 | 1.0 | 1.5 | 2 |
Interior dimensions(mm) | 500×400×550 | 500×400×750 | 550×550×850 | 550×550×1140 |
Exterior dimensions(mm) | 640×668×1210 | 640×668×1410 | 690×820×1510 | 690×820×1800 |
