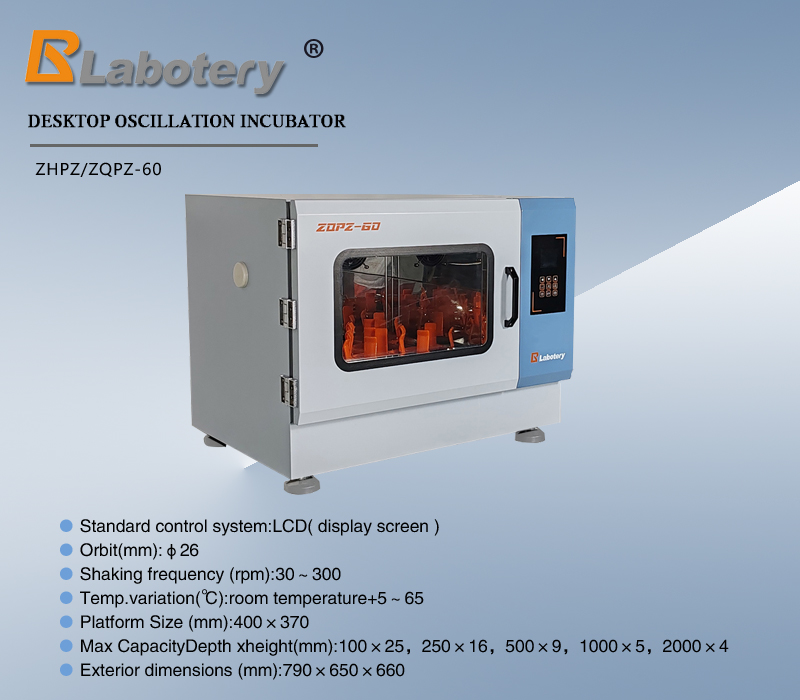

Desktop oscillation incubatorZHPZ-60/ZQPZ-60
Widely used in microbial, viral, bacterial culture, fermentation, hybridization, biochemical reactions, and cell tissue research. This provides effective assistance for research on cultivation and enzyme engineering with different requirements for temperature, oscillation frequency, and amplitude. It plays a wide and important role in research applications such as medicine, biology, molecular biology, pharmaceuticals, food, and environmental protection
Product Features
Desktop side door structure design, simple, lightweight and convenient in structure. It can be placed on the workbench for use, placed under the workbench for use, and can be stacked for use. It can meet the needs of laboratories in different environments, is convenient and flexible, and saves space.
Adopting imported fluorine free refrigeration compressor and unique refrigeration working mode design, it ensures that the compressor will not shut down due to self overheating, thereby achieving high-quality temperature control effect.
Innovative air duct structure design to make the temperature in the studio more uniform; And the circulating wind speed is infinitely adjustable, fully meeting the experimental environment needs of users.
Adopting a wide cross flow air duct structure design to make the temperature inside the studio more uniform; And the circulating wind speed is infinitely adjustable, fully meeting the experimental environment needs of users.
There is a test hole designed on the left side of the box for easy access to test cables.
The door is designed with a hollow tempered glass observation window for easy observation of the internal situation.
Driven by high-quality servo motors, precise speed measurement, long lifespan, and maintenance free.
Unique speed control programmable operation, which can perform forward, reverse, and stop rotation program operation, and the running time of each section can be freely set and converted.
The unique motor overcurrent protection function ensures safer operation and greatly improves the service life of the motor and control system.
Two control system forms are available: LCD large screen display and true color touch screen program temperature control, fully meeting your needs.
It has a timing function with a time setting range of 0 to 9999 hours.
It has a power-off memory function to avoid data loss caused by power outages or crashes.
The control system integrates lighting and UV sterilization functions for easy observation and sterilization.
Equipped with over temperature sound and light alarm, and automatic power-off function. It has a fault self diagnosis function.
It has a door control function and automatically stops rotating when the door is opened.
Optional features:
Upgradeable optional micro printer: prints data and curves (optional).
Upgradeable 485 interface remote control system: It can be remotely controlled, analyzed, and exported according to work needs.
Upgradeable 7-inch touchscreen control system (optional).
Technical Parameter

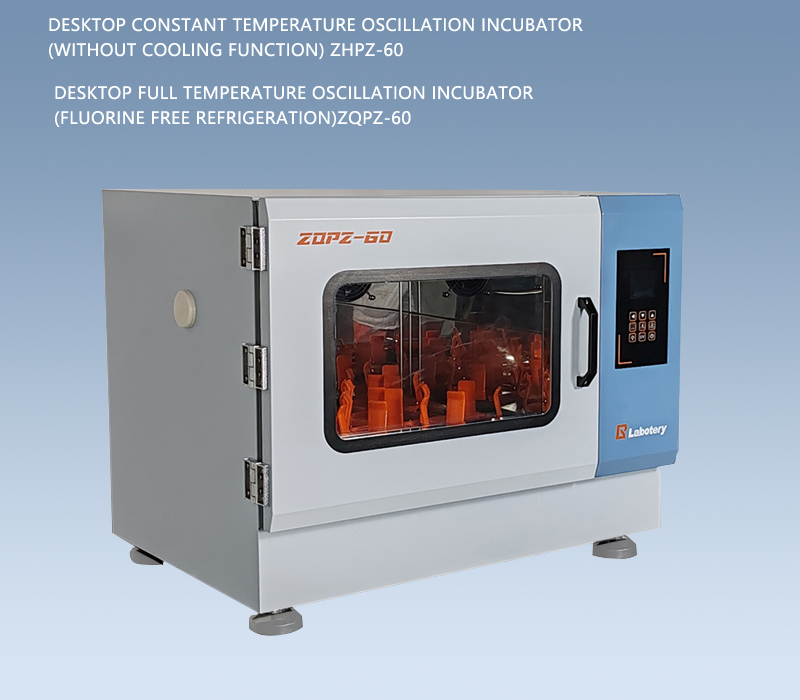

| Product Name | Desktop constant temperature oscillat ion incubator (without cooling function) | Desktop full temperature oscillation incubator (fluorine free refrigeration) |
Model | ZHPZ-60 | ZQPZ-60 |
| Standard control system | LCD (Liquid Crystal Display Screen) | |
| Shaking frequency(rpm) | 30-300rpm | |
| Shaking frequency precision(rpm) | ±1rpm | |
| Orbit(mm) | Φ26mm | |
Temp.variation（℃） | Room temperature+5~65℃ | Room temperature-15~65℃ |
Temp.resolution（℃） | 0.1 | |
Temp. uniformity（℃） | ±0.5℃（37℃时） | |
Temperature fluctuation | ±0.3℃（37℃时） | |
| Control mode | P．I．D Microcomputer intelligent control | |
| Platform size(mm) | 400x370mm | |
| Max.capacity/layer(mlxpiece) | 100mlx25,250mlx16,500mlx9,1000mlx5,2000mlx4 | |
| Timing range Power(Kw) | 0-9999Minutes (hours) | |
| Timing range Power(Kw) | 0.75 | 0.55 |
| Power Supply(V) | AC220±10%/50~60Hz | |
Outline dimensions(mm) | 790x650x660 | |
Note:
1. The performance parameter test under no-load conditions is: ambient temperature of 20 ℃, ambient humidity of 50% RH
2. Working environment temperature: 5-25 ℃
