YPL-300/300S Bottle Shaker (Open Oscillator)
Product Features
1. Adopt HVDC brushless motor control scheme;Positive and negative rotation can be set.
2. Adopt five-axis integrated eccentric wheel shaft drive;
3. Microcomputer large screen temperature control display;
4. With timing function.
5. Power off memory function.
6. Over temperature sound-light alarm and automatic power off function
7. It has the function of fault self-diagnosis, automatically power off in case of fault, and prompt the fault code.
Main Technical Parameters

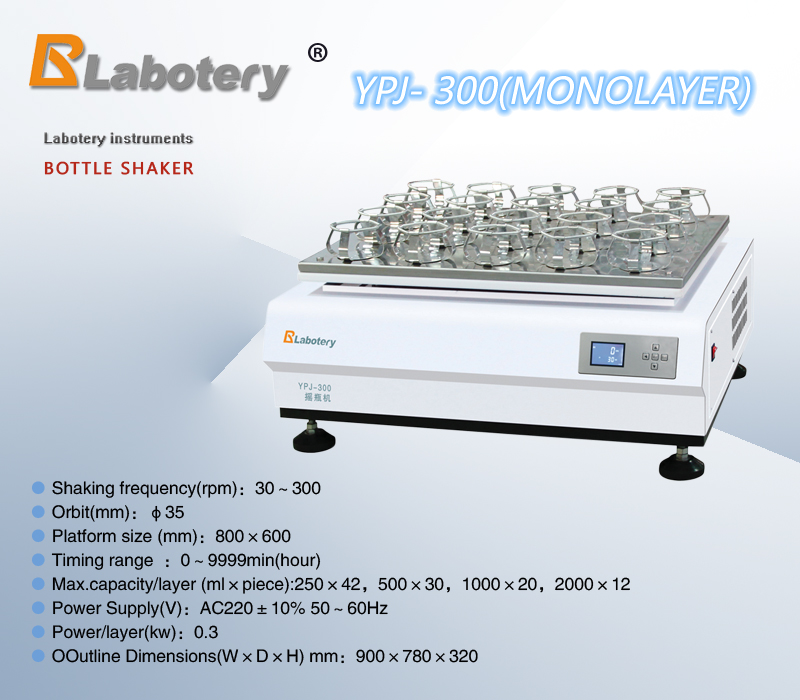

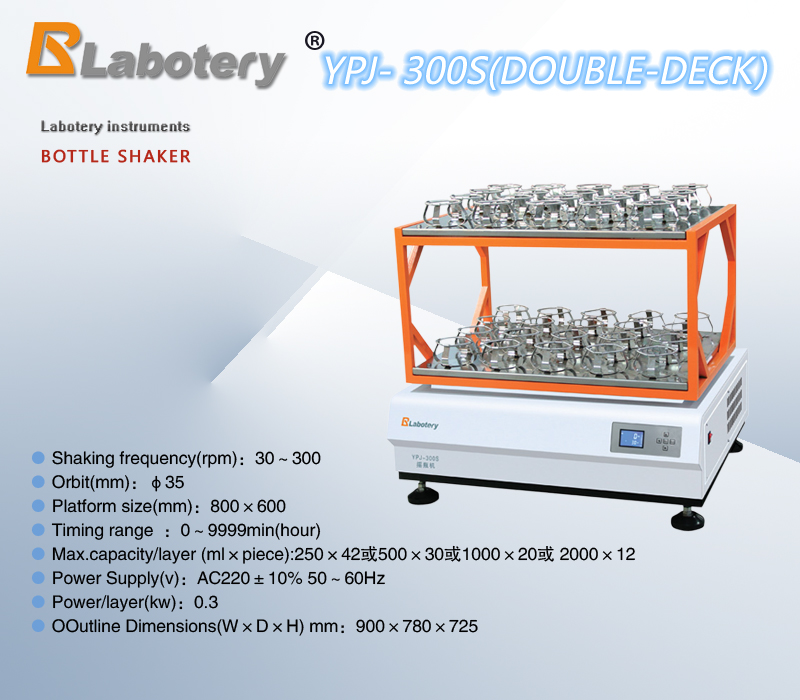

Model | YPL-300(Monolayer) | YPL-300S(Double-deck) |
Shaking frequency(rpm) | 30-300 | |
Shaking frequency precision(rpm) | ±1 | |
Orbit(mm) | Ф35 | |
Shaking mode | Cyclotron shaking | |
Platform size (mm) | 800×600 | |
Max.capacity/layer（ml×piece） | 250×42 or 500×30 or 1000×20 or 2000×12 | |
Timing range | 0-9999 min(hour) | |
Power(Kw) | 0.3 | |
Power Supply(V) | AC220±10% 50~60Hz | |
Outline dimensions(mm) | 900×780×320 | 900×780×725 |
Tagging：
1.The performance parameter test under no-load conditions is: ambient temperature of 20 ℃, ambient humidity of 50% RH
2.Working environment temperature: 5-25 ℃
3.To fully utilize the effectiveness of the equipment, the fixture configuration for all specifications of products leaving the factory shall be based on the standard capacity configuration.
